DC Aquarium Pump – Bottom Feed Pump

Short Description:


Product Detail

Product advantages

Product Tags

Product Overviews

We focus on high-end aquarium market, and occupy 60% high end aquarium market in China, more than 300 deales in domestic and have OEM and ODM experience for many global well-known Brands. Such as Tropical Marine Centre in UK, Royal Exclusiv in Gemany and so on. We have our own moulding factory, has the ability and capacity to open the mould. Welcome to visit us.

cgf (1)

This high end blue series has the main feature as below:
● Sine wave Technology, super quiet, <30dB
● Intelligent control with remote failure alarm
● DC12V/24V, safe to use
● For both sea water and fresh water
● 20-level speed adjustable
● 5-year warranty
● Smart Size, attractive looking
● Power saving and money saving

Parameter

Model

BS500

BS700

BS700

(Adjustable)

BS1500

BS2500

BS3500

Flow

500L/H

700L/H

700L/H

1500L/H

2500L/H

3500L/H

Head

1.2M

1.5M

1.5M

3M

3M

3.5M

Max. Power

4W

9W

9W

19W

28W

36W

Min. Power

1W

4W

7W

8W

Voltage

5V

12V

12V

24V

24V

Size

55*55*115mm

63*63*144mm

75*74*170mm

Outlet

12mm/16mm

16mm/20mm

20mm/25mm



Model

BS4500

BS6000

BS8000

BS10000

BS12000

Flow

4500L/H

6000L/H

8000L/H

10000L/H

12000L/H

Head

4M

5M

5M

4.5M

5M

Max. Power

48W

72W

80W

96W

105W

Min. Power

10W

14W

15W

17W

19W

Voltage

24V

24V

24V

24V

24V

Size

87*86*210mm

102*100*246mm

Outlet

25mm/32mm

32mm/40mm

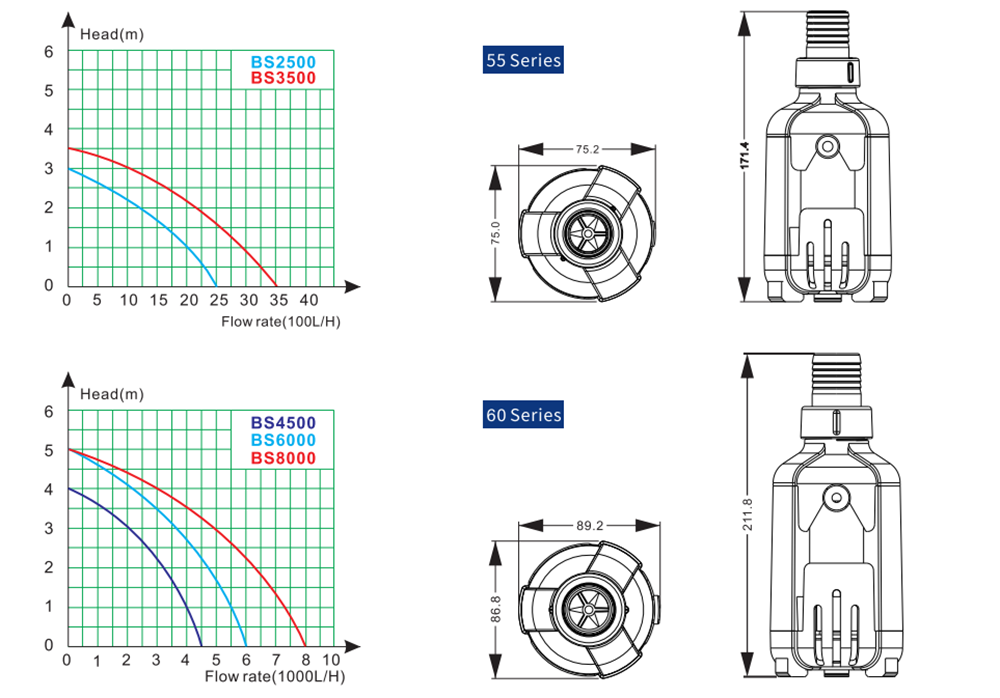

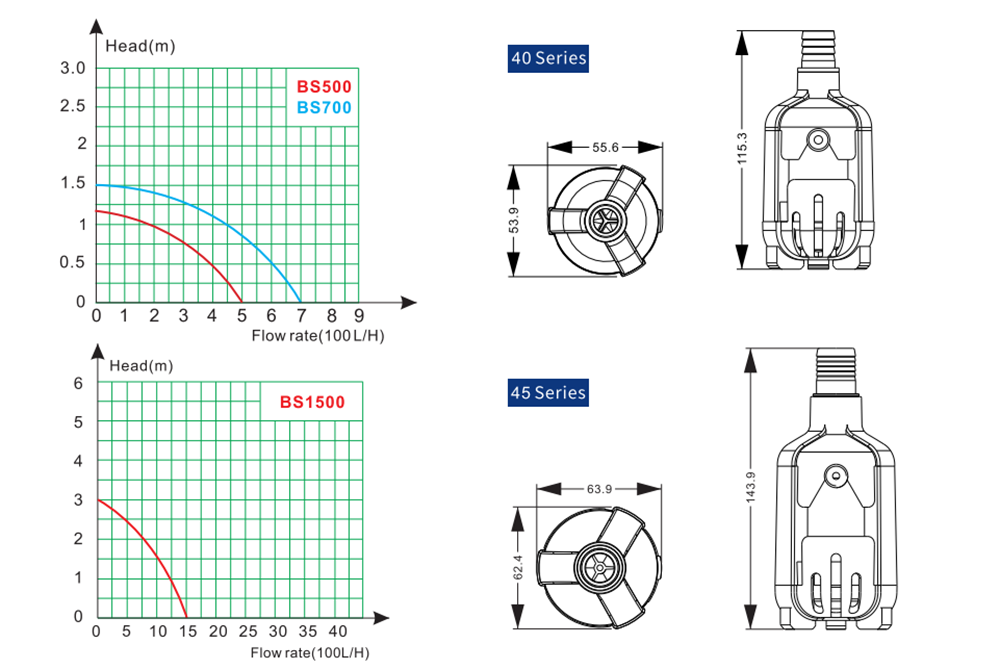

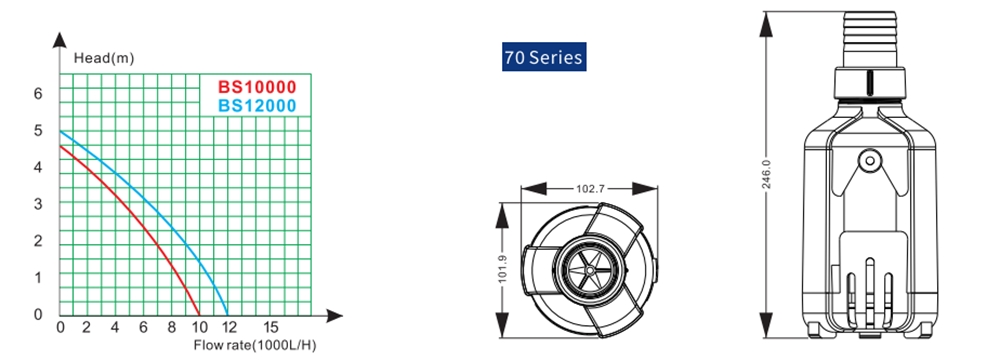

Flow rate curve

cgf (2) cgf (3) cgf (4)

Four Mode

1.Constant flow mode
2.Wave making mode
3.Nutrition transmission mode
4.Feeding mode

protection function

1.Dry run protection
2.K-Jam protection
3.Over voltage protection
4.Low voltage protection
5.Overloading protection

FAQ

●How long is the delivery time?
Sample order is 3~5 days.
Bulk order is 10~15 days.
If there is pumps in stock, it is 2 days.

●How long is the warranty of pump?
Warranty is 5 years, can be repaired or returned free of charge if non-man-made damage.(Note: for the power supply, warranty is 2 years).

●What’s the payment method?
Paypal or T/T,Alipay

●What certificates have your pumps passed?
All our products have passed CE, RoHS
High welcome OEM and ODM!


  • Previous:
  • Next:

  • 1.DC Low voltage safe and reliable
    2.Three phase brushless sine wave control technology
    3.Eliminate high-frequency electromagnetic noise, smooth and silent
    4.The pump body and the drive can be separated and resistant to high temperature
    5.Magnetic isolation design, leakage proof, waterproof grade IP68.
    6.Acid, alkali and salt corrosion resistance, oil resistance, organic solvents and other liquid media (consult in advance)
    7.Constant power can be customized (for example, 12V 80W water pump, Constant Power 80W with voltage varying between 12v-24v)
    8.Constant speed can be customized (keep the speed unchanged when the load changes)
    9.Accurate dry run protection and Jam protection based on current detection (programmable protection mechanism)
    10.Soft start eliminates the peak voltage and reduces the starting current
    11.Suitable for Music fountain and other high-frequency start- stop application
    12.MPPT function can be customized for solar power supply to avoid poor startup when the light is weak.
    13.The pump and pump control system can be customized for various application environment requirements
